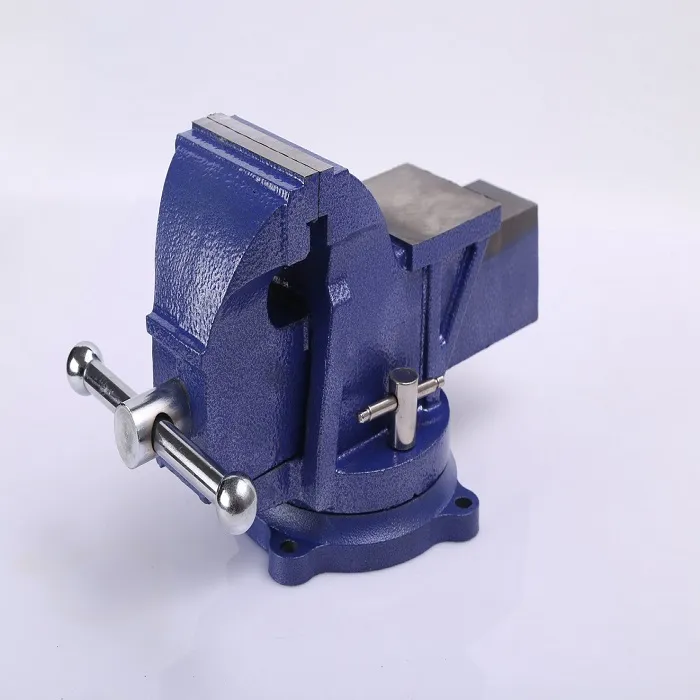

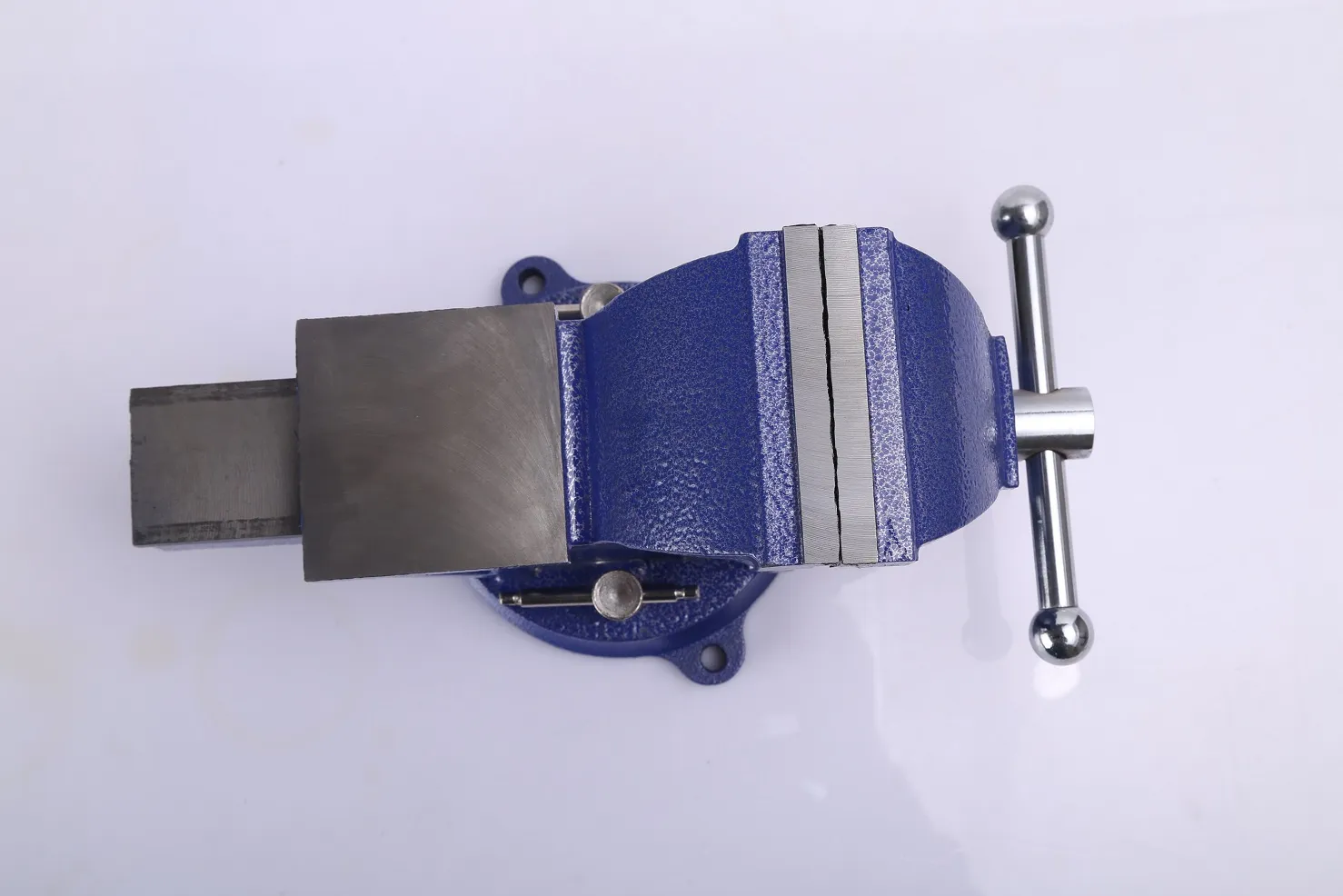

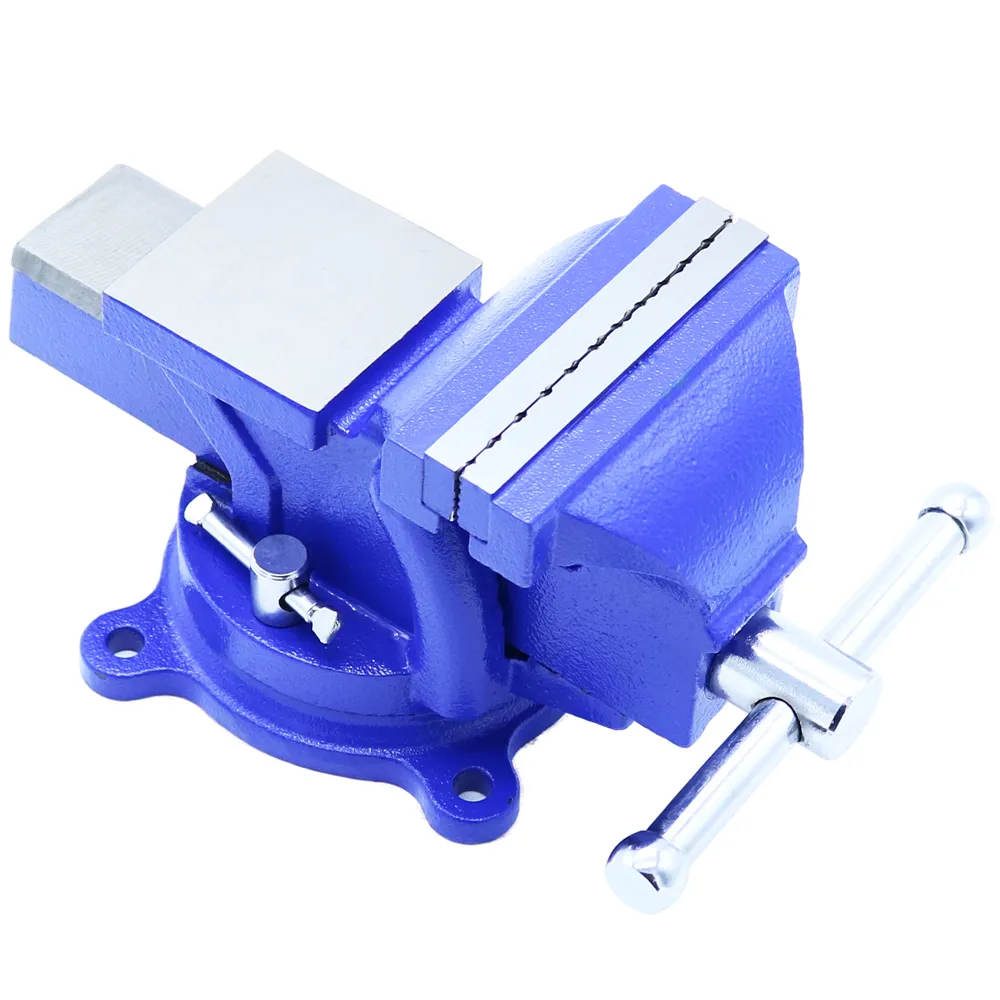

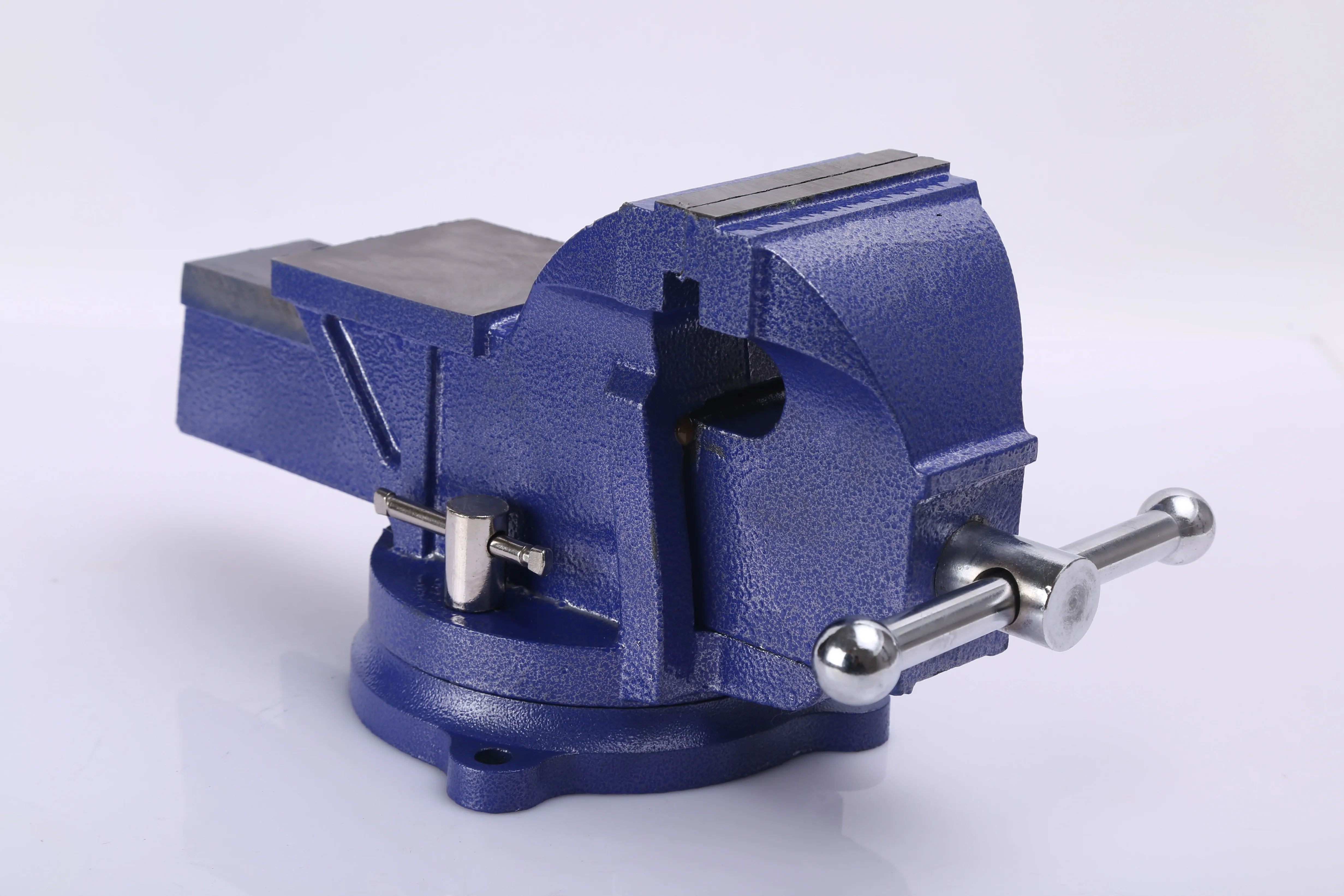

swivel base with anvil
Features

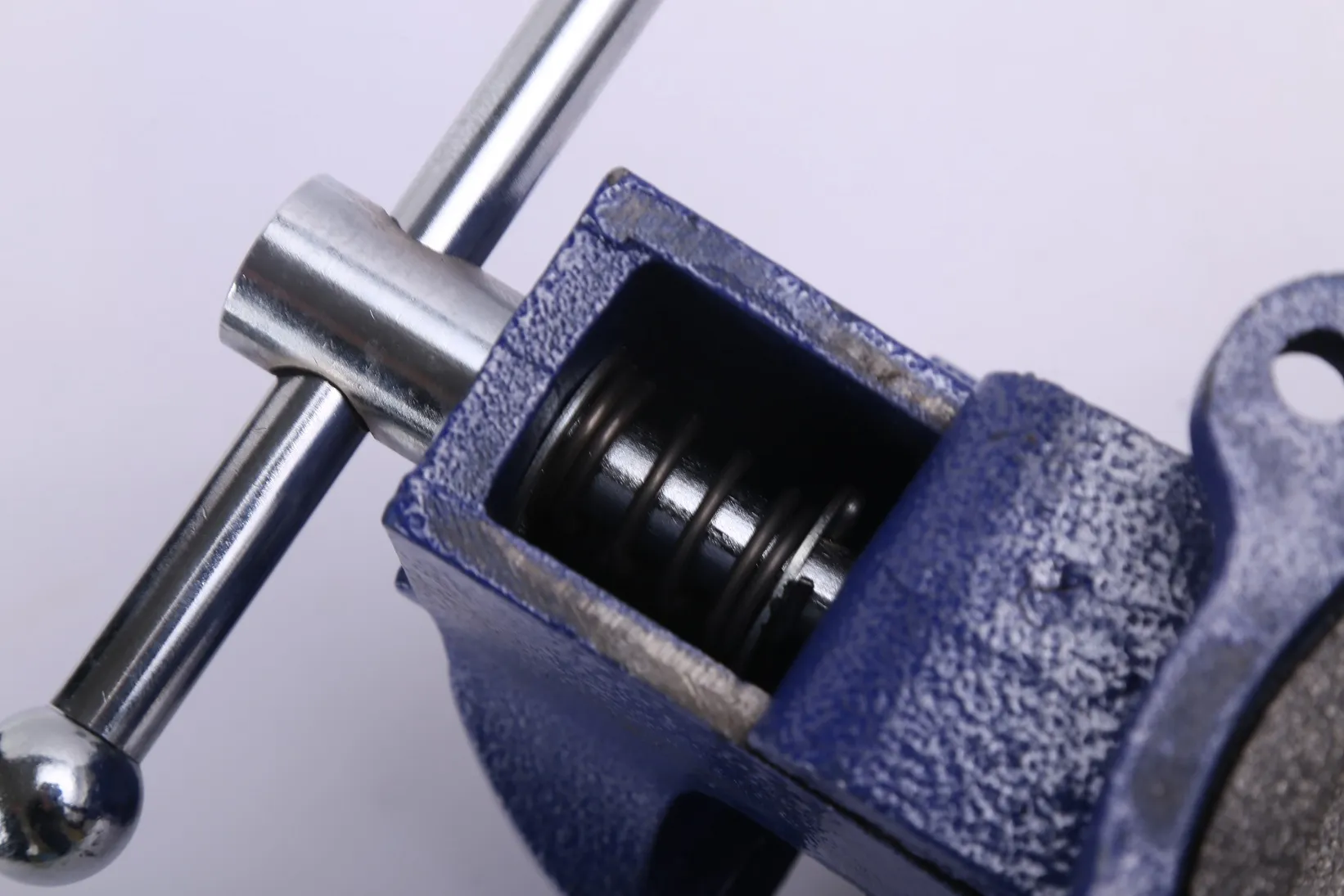

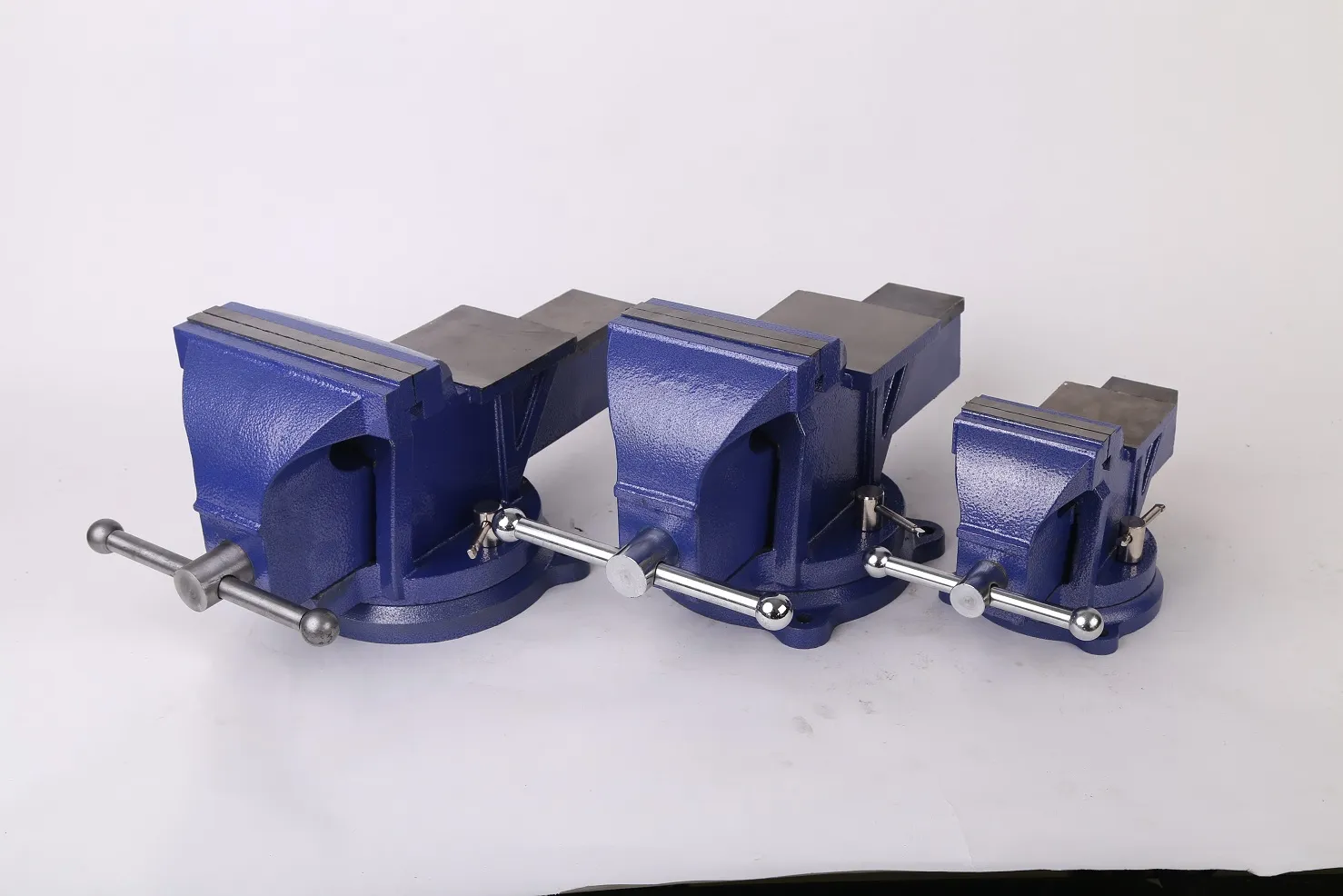

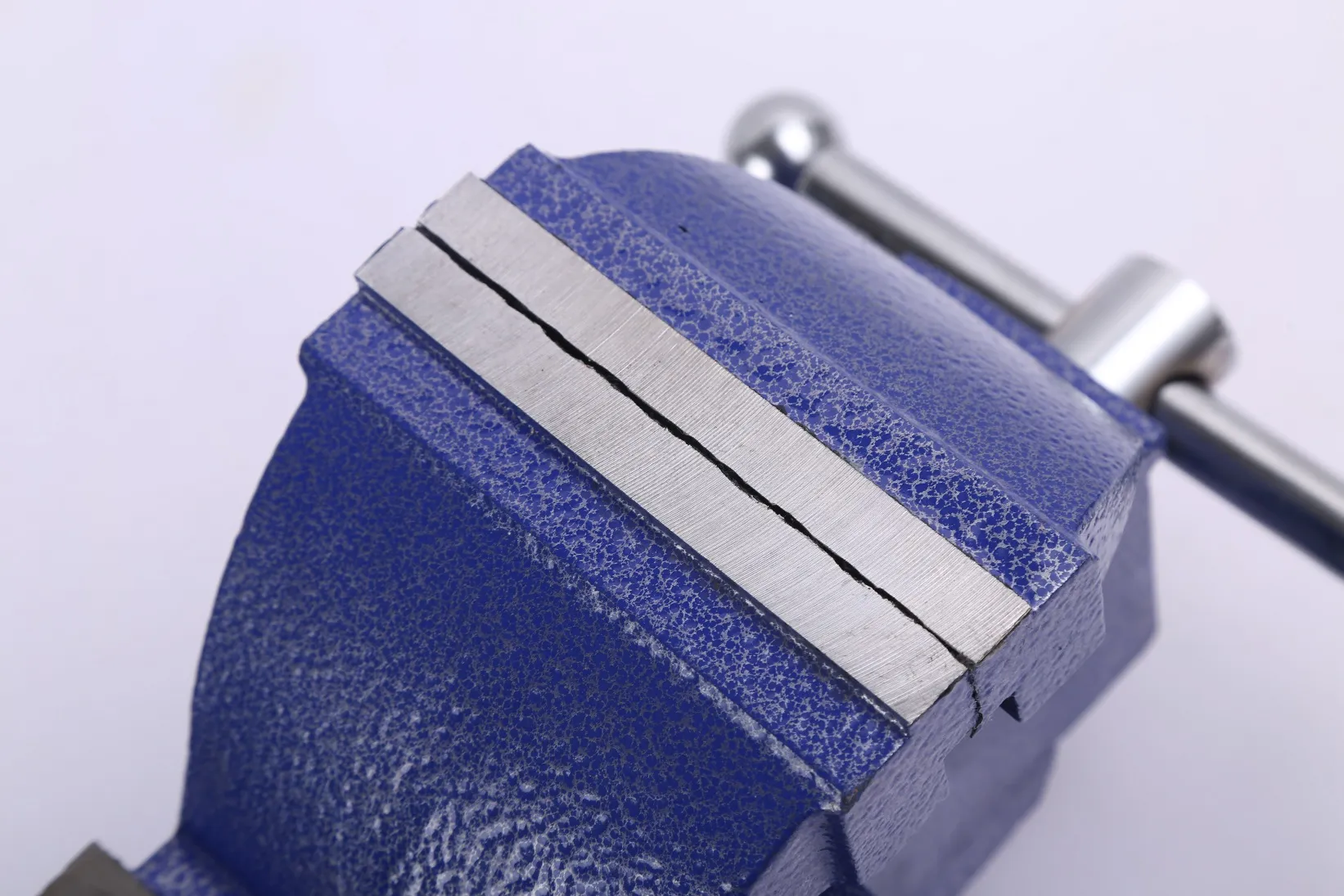

| Introduction: ●Jaw Width: 3" 4" 5" 6" 8"10" ●Material: Gray cast iron ●Hardened Jaw of HRC 46-52 ●Fine Casting Body With Coating Finish ●Large Ground Anvil ●Inside Ductile Iron Screw Nut ●Polished or Chrome Plated ●120°Swivel Base,360°Available | ||||||||
Specifications
| Model | Size | Width of Jaw(mm) | Max Opening(mm) | Throat Depth(mm) | Clamping Force(KN) | Net Weight(kg) | Qty/ctn | CTN Size(CM) | CTN Weight(kg) |
| DR-770800100 | 3"/75MM | 75 | 90 | 50 | 10 | 4.8 | 4 | 56*28*17 | 21/19 |
| DR-770800101 | 4"/100MM | 100 | 90 | 50 | 10 | 5 | 4 | 56*28*17 | 22/20 |
| DR-770800102 | 5"/125MM | 125 | 100 | 55 | 15 | 7.5 | 2 | 31*28*18 | 16/15 |
| DR-770800103 | 6"/150MM | 150 | 135 | 70 | 20 | 11.5 | 2 | 37*26*20 | 26/24 |
| DR-770800104 | 8"/200MM | 200 | 150 | 77 | 25 | 18 | 1 | 43*22*22 | 19/18 |
| DR-770800105 | 8"/200MM | 200 | 150 | 77 | 26 | 21 | 1 | 43*22*22 | 22/21 |
| DR-770800106 | 10"/250MM | 250 | 170 | 85 | 29 | 30 | 1 | 50*26*25 | 32/30 |
