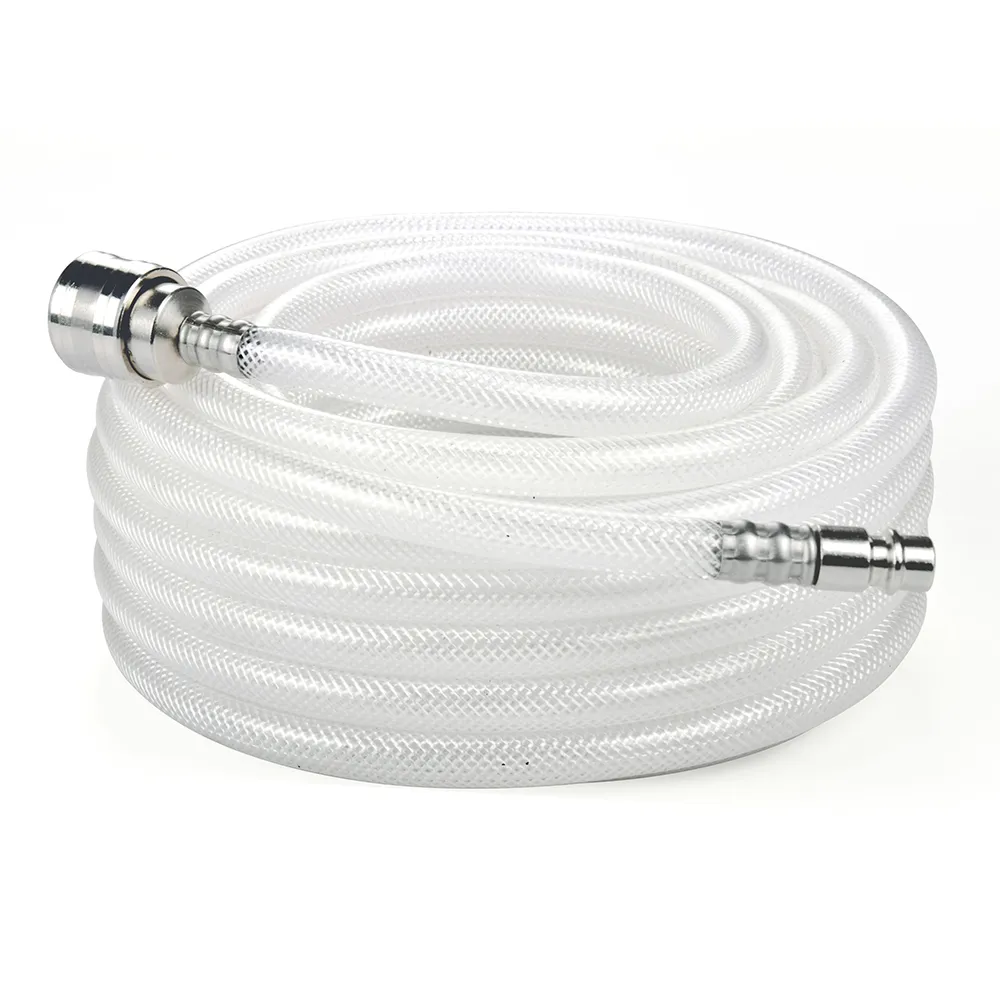

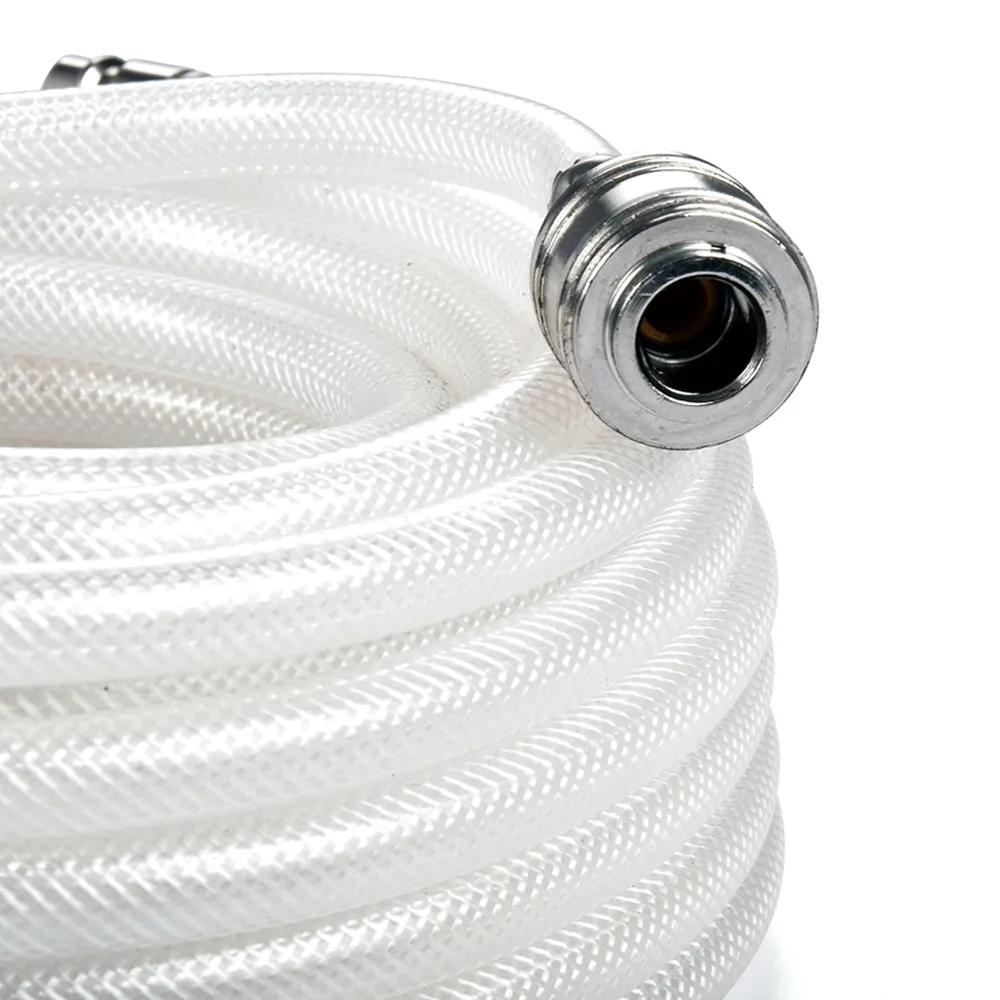

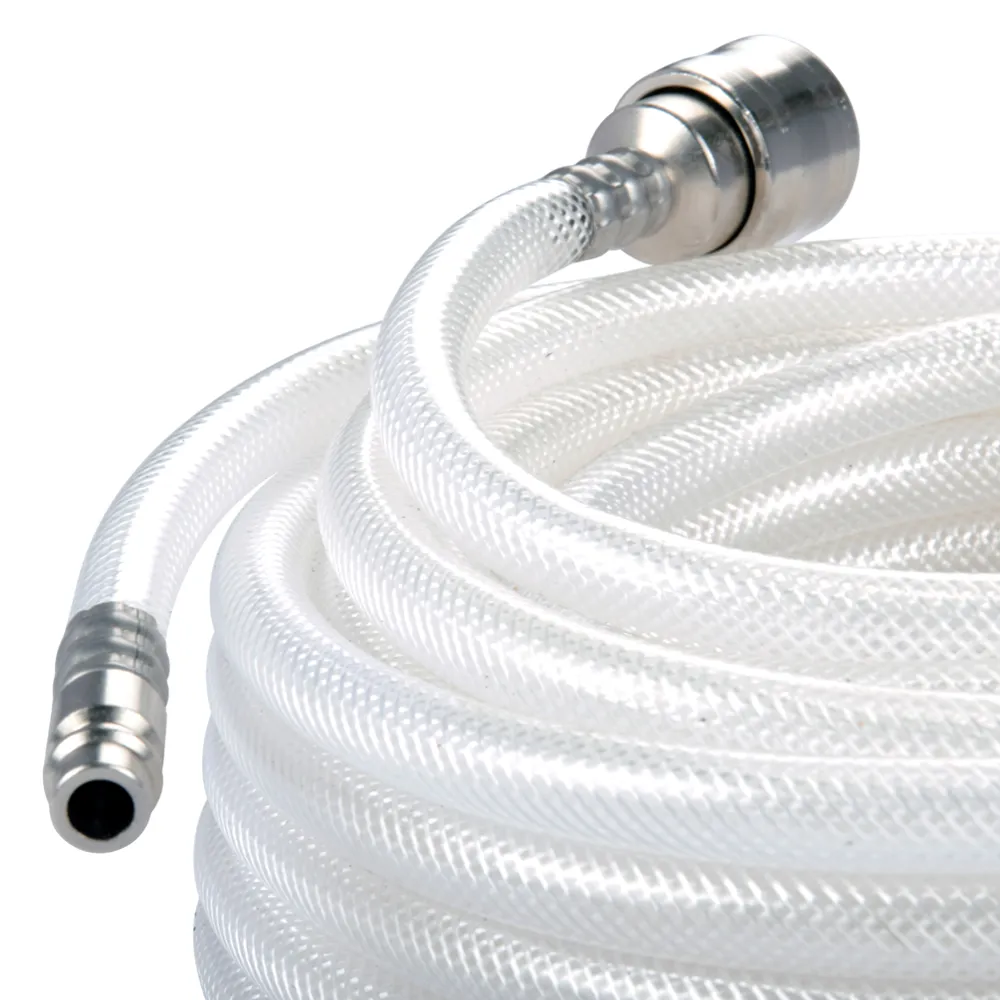

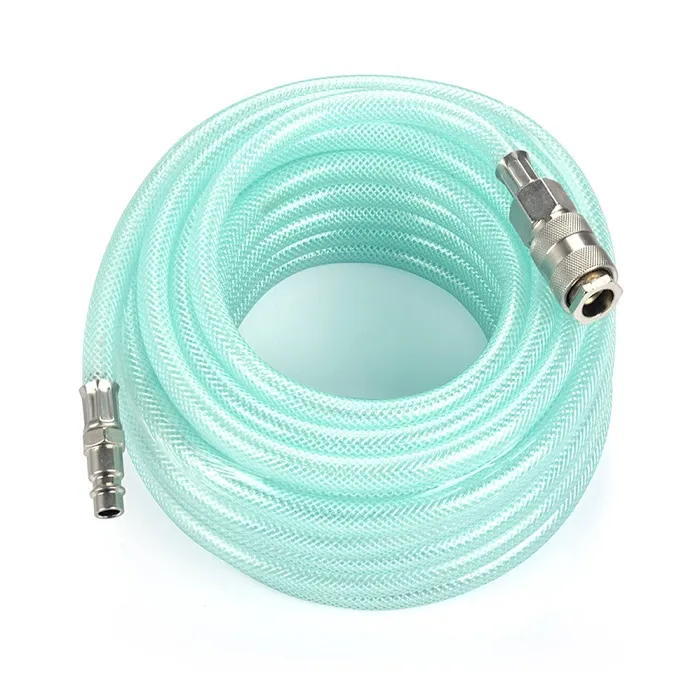

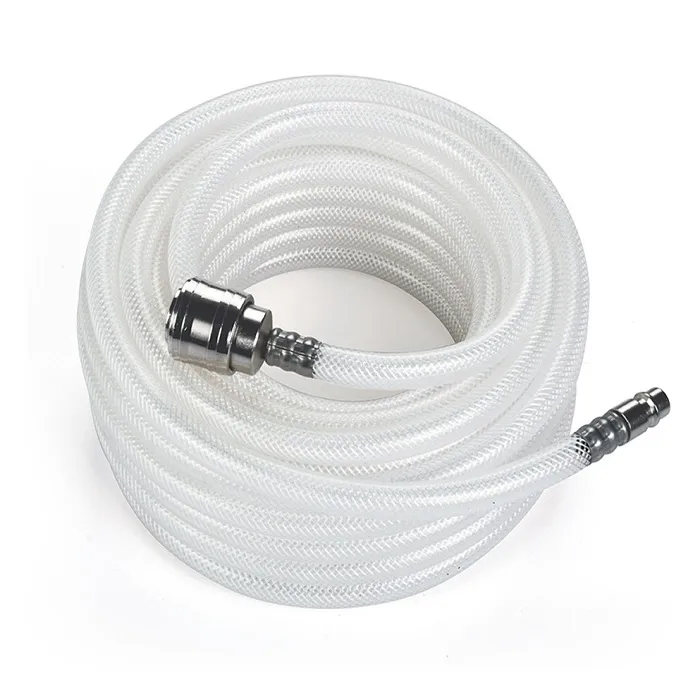

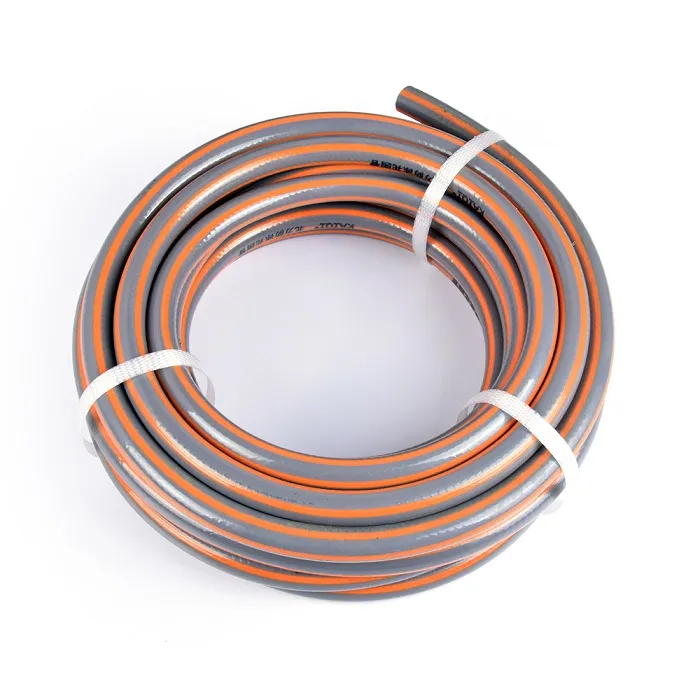

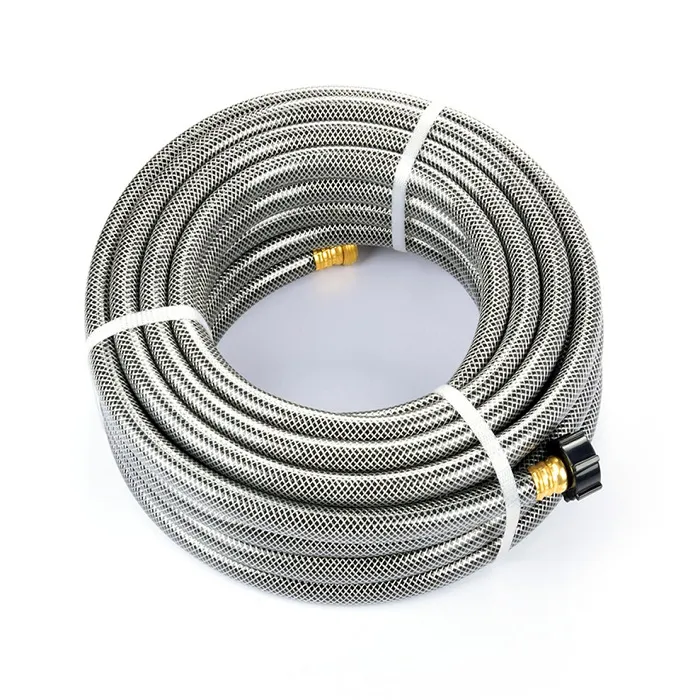

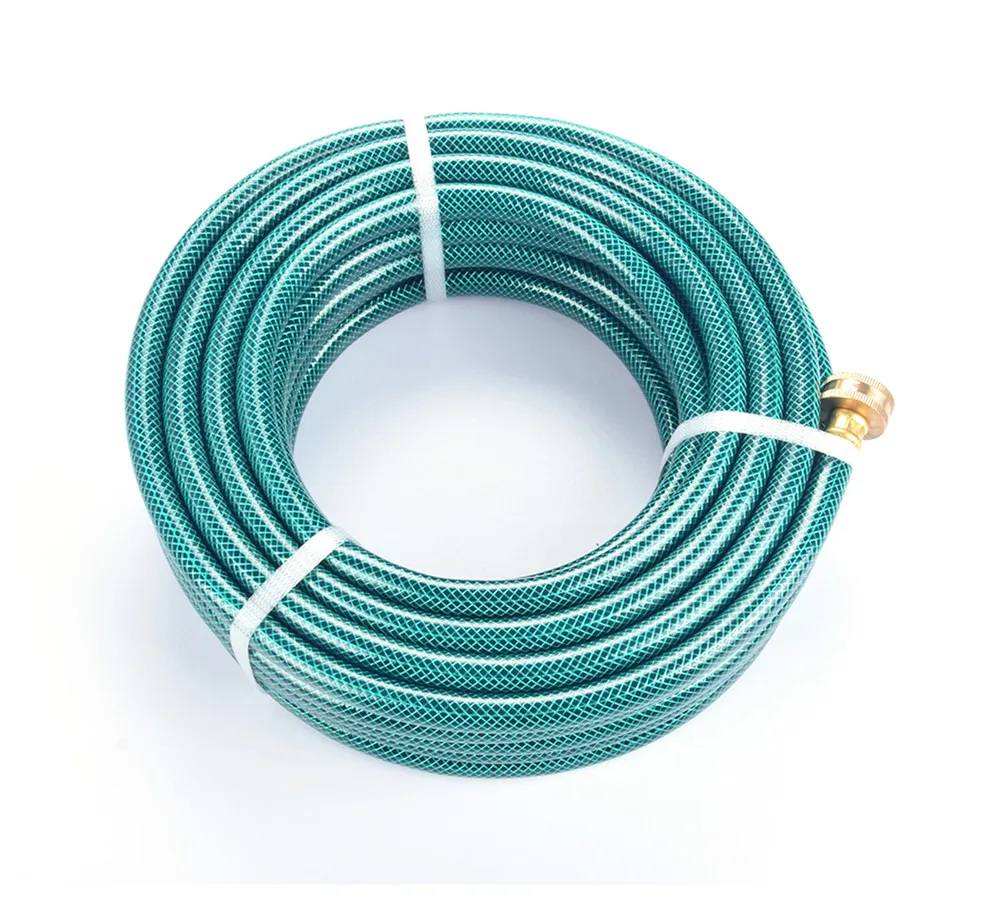

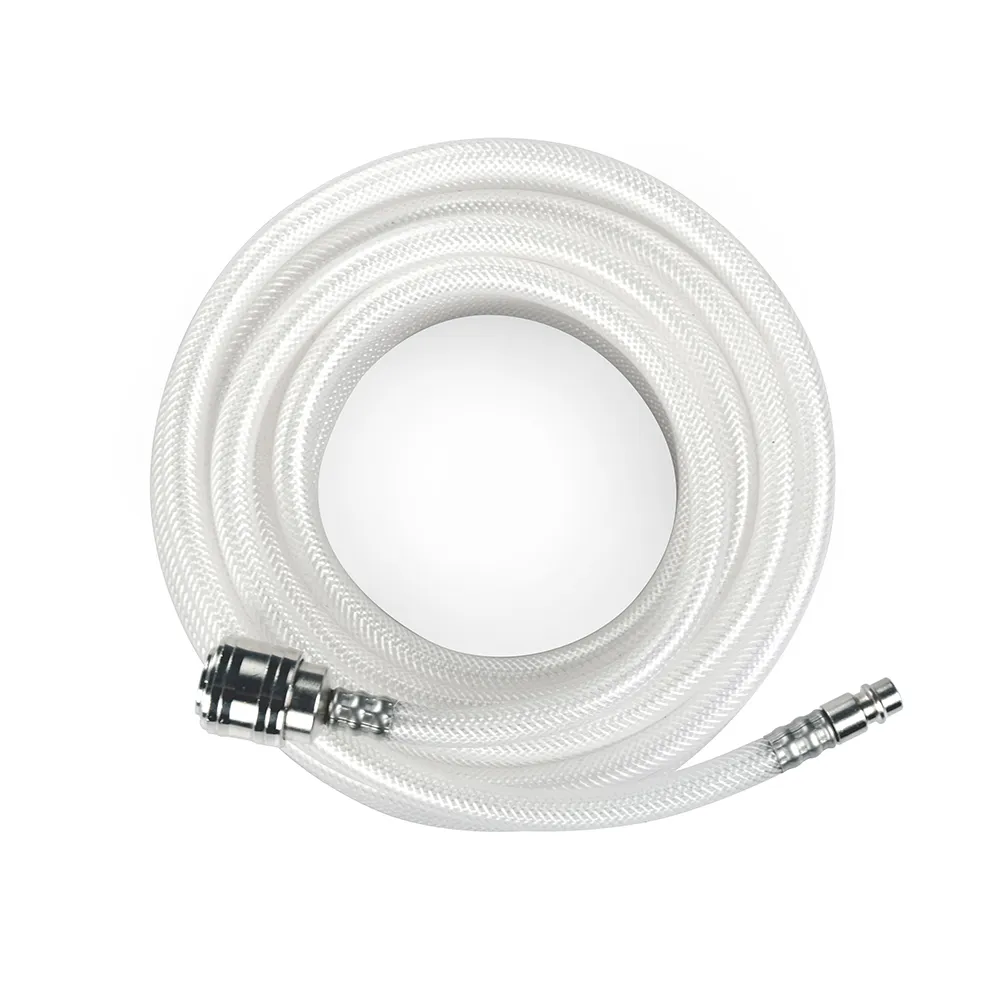

grade hose4
Features
Made of PVC material or endineered Hybrid Polymer material.
Widely used for conveying of air, inert gas, and water in industry, agriculture, construction, engineering, mechanical and other sectors.
Used in air pressure wind gun machines for excavating,mines. and roads at quarry.
Used in pressure system of various air compressors and industrial equipment.
Widely used for conveying of air, inert gas, and water in industry, agriculture, construction, engineering, mechanical and other sectors.
Used in air pressure wind gun machines for excavating,mines. and roads at quarry.
Used in pressure system of various air compressors and industrial equipment.
Specifications
| Inch Size | Metric Size | Length | MAX.W.P | MAX.B.P | Weight | Volume | |
| I.D. | O.D. | ||||||
| mm | m | bar | bar | kg/roll | m3/roll | ||
| 1/5" | 5 | 8 | 100 | 10 | 30 | 3.90 | 0.012 |
| 5 | 9 | 100 | 15 | 45 | 5.70 | 0.013 | |
| 1/4" | 6 | 11 | 100 | 15 | 60 | 8.67 | 0.018 |
| 6 | 12 | 100 | 20 | 80 | 11.00 | 0.020 | |
| 5/16" | 8 | 13 | 100 | 15 | 60 | 10.50 | 0.028 |
| 8 | 14 | 100 | 20 | 80 | 12.90 | 0.032 | |
| 3/8" | 9 | 14 | 100 | 15 | 60 | 11.40 | 0.032 |
| 9 | 15 | 100 | 20 | 80 | 14.20 | 0.043 | |
| 9.5 | 15 | 100 | 15 | 60 | 13.40 | 0.046 | |
| 9.5 | 16 | 100 | 20 | 80 | 16.50 | 0.048 | |
| 1/2" | 12 | 18 | 50 | 15 | 60 | 9.10 | 0.250 |
| 12 | 19 | 50 | 20 | 80 | 10.80 | 0.030 | |
| 13 | 20 | 50 | 20 | 80 | 11.50 | 0.035 | |
| 5/8" | 15 | 22 | 50 | 15 | 45 | 13.20 | 0.033 |
| 16 | 23 | 50 | 15 | 45 | 13.60 | 0.042 | |
| 16 | 24 | 50 | 15 | 60 | 16.00 | 0.056 | |
| 3/4" | 19 | 26 | 50 | 15 | 45 | 16.00 | 0.061 |
| 19 | 27 | 50 | 15 | 60 | 18.50 | 0.065 | |
| 1" | 25 | 33 | 50 | 15 | 40 | 23.60 | 0.072 |
| 25 | 34 | 50 | 15 | 45 | 26.70 | 0.085 | |
