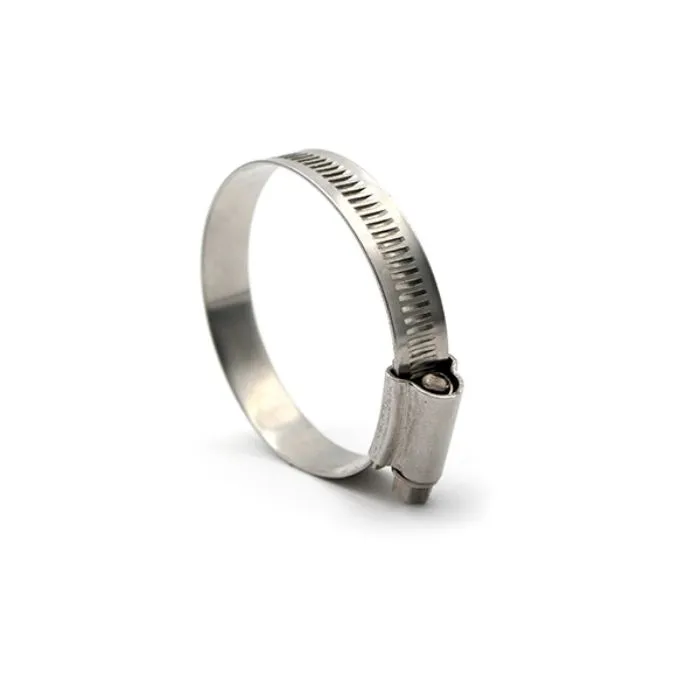

dr-8102005british type hose clamp
Features
●Rolled-up band edges and a non-perforated(embossed) band that protects the hose;;
●Features high clamping force and high durability torque;
●A non-perforated band with rolled up edges eliminates hose damage while increasing clamping force.
●For salt water and many other highly corrosive environments.
●Features high clamping force and high durability torque;
●A non-perforated band with rolled up edges eliminates hose damage while increasing clamping force.
●For salt water and many other highly corrosive environments.
Specifications
| Size (mm) | Code | Bandwidth*Thickness (mm) | Torque (N.m) | |
| 9.5-12 | MOO | 9.7*0.8 | ≥3.5 | |
| 11-16 | OOO | 9.7*0.8 | ≥3.5 | |
| 19-29 | OX | 9.7*0.8 | ≥3.5 | |
| 22-32 | 1A | 11.7*0.9 | ≥5 | |
| 32-44 | 1X | 11.7*0.9 | ≥5 | |
| 38-57 | 2 | 11.7*0.9 | ≥5 | |
| 44-64 | 2X | 11.7*0.9 | ≥5 | |
| 55-70 | 3 | 11.7*0.9 | ≥5 | |
| 64-76 | 3X | 11.7*0.9 | ≥5 | |
| 70-89 | 4 | 11.7*0.9 | ≥5 | |
| 80-100 | 5 | 11.7*0.9 | ≥5 | |
| 90-110 | 5X | 11.7*0.9 | ≥5 | |
| 120-150 | 7X | 11.7*0.9 | ≥5 | |
