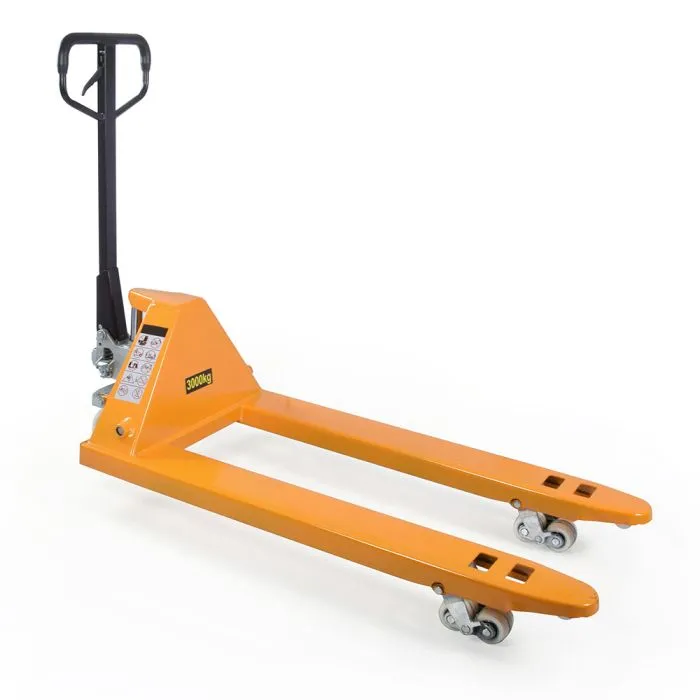

dr-5903001hydraulic hand pallet truck
Features
Type: Casting type & Welding type Product features ●Economical,superior cost performance ●High strength "C"type fork ●High strength welding hydraulic pressure oil cylinder,equipped with safety valve ●High quality integrated cast cylinder ●Oil cylinder is equipped with permanent flow valve to ensure steady descend for the goods because of over loading ●High-balanced intensifying frame |
Specifications
Item | Unit | Size | |||
Capacity | kg | 2000 | 2500 | 3000 | 5000 |
Fork outside distance | mm | 550 | 685 | 685 | 685 |
Fork length | mm | 1200 | 1200 | 1220 | 1220 |
Max.fork height | mm | 195/186 | 195/185 | 195/186 | 195/186 |
Lowered fork height | mm | 85/75 | 85/75 | 85/75 | 85/75 |
Max.lifting height | mm | <110 | ≥110 | ≥110 | ≥110 |
Format of front wheel | Single/Double | ||||
Material of the front wheel/loaded wheel | Nylon/Rubber/Polyurethane | ||||
Truck weight | kg | 70-80 | 70-80 | 70-80 | 140 |
