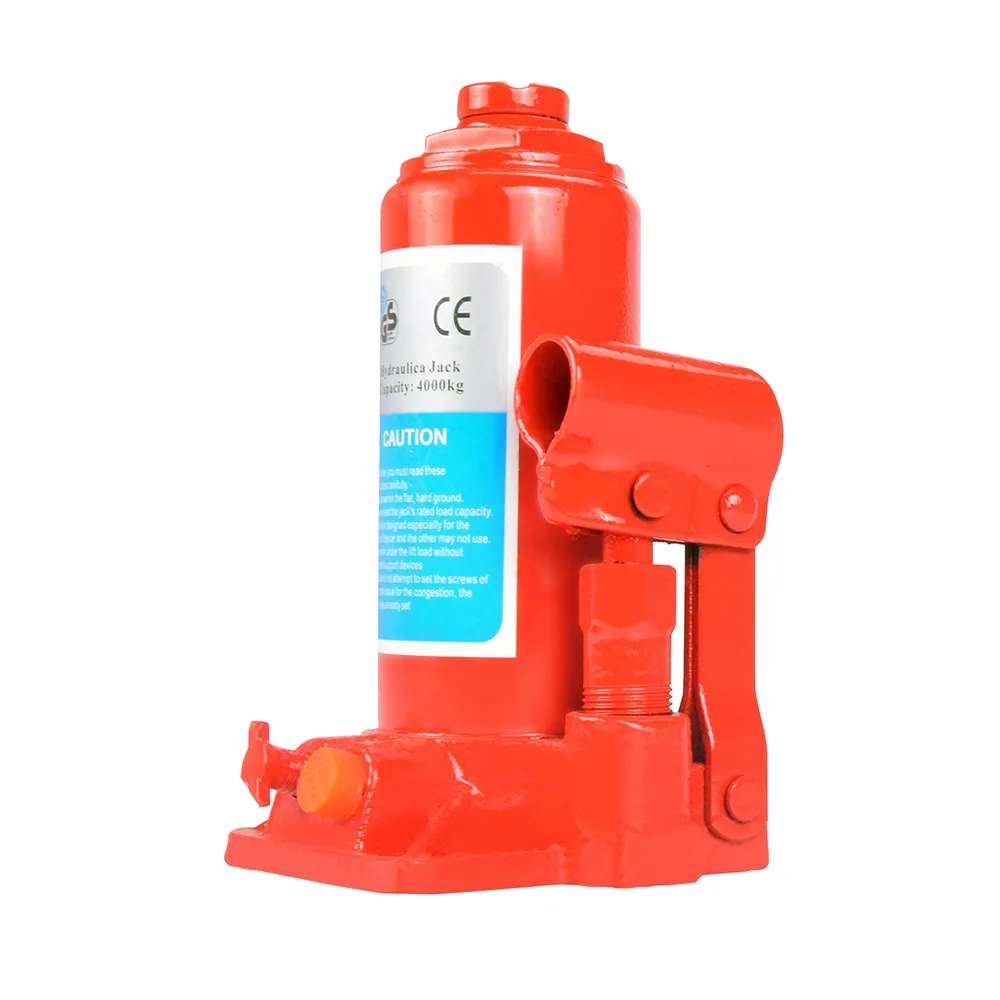

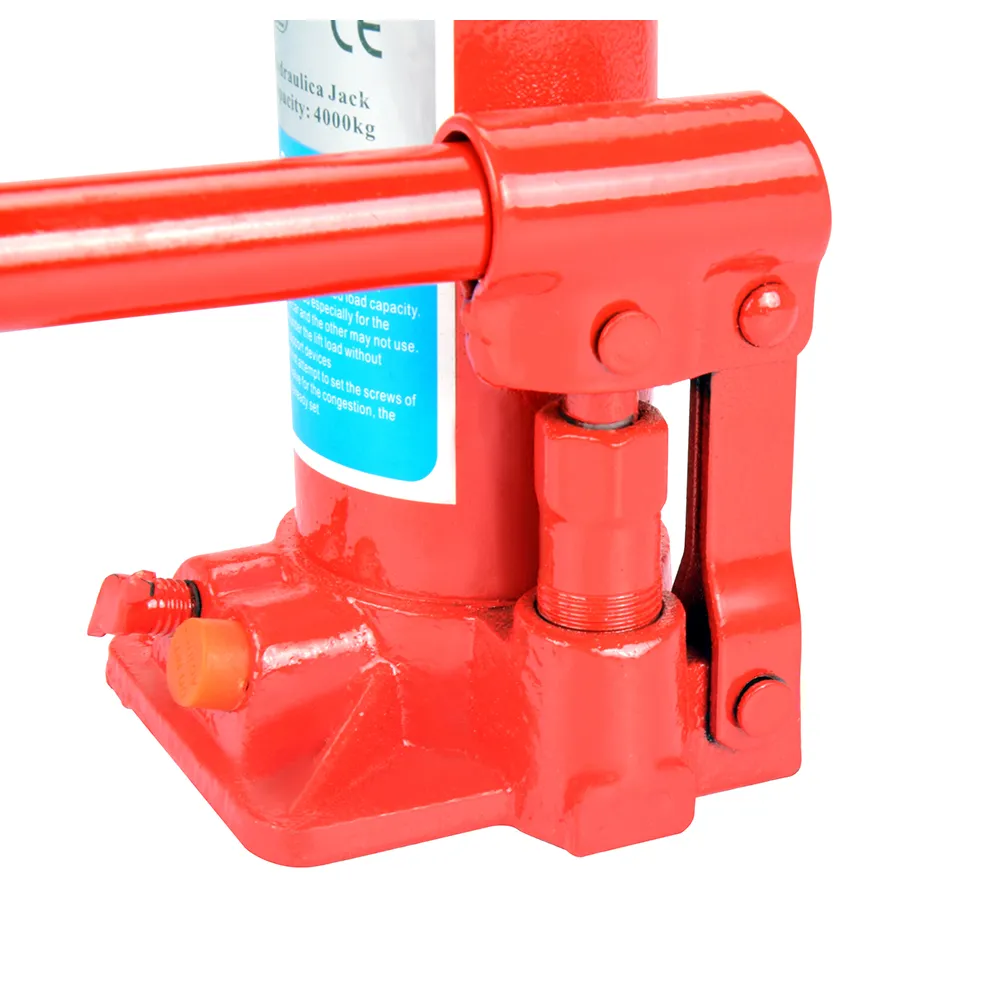

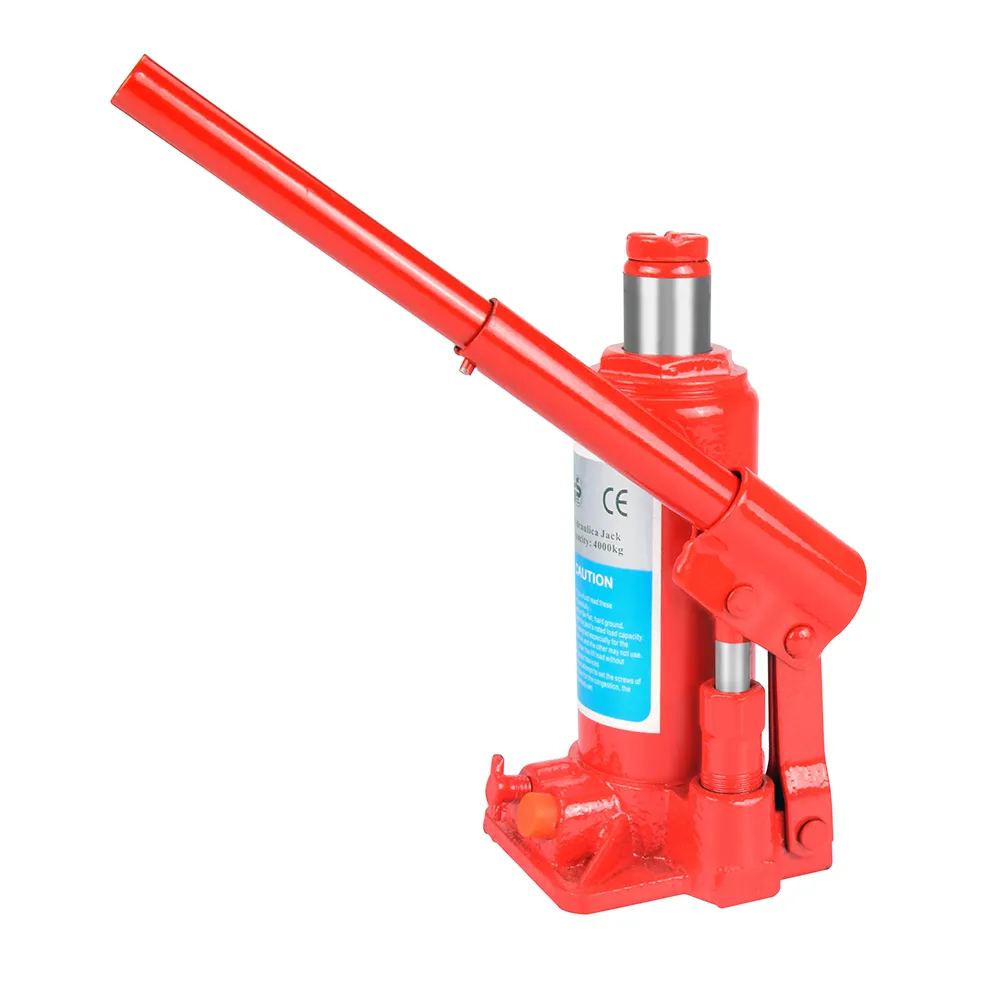

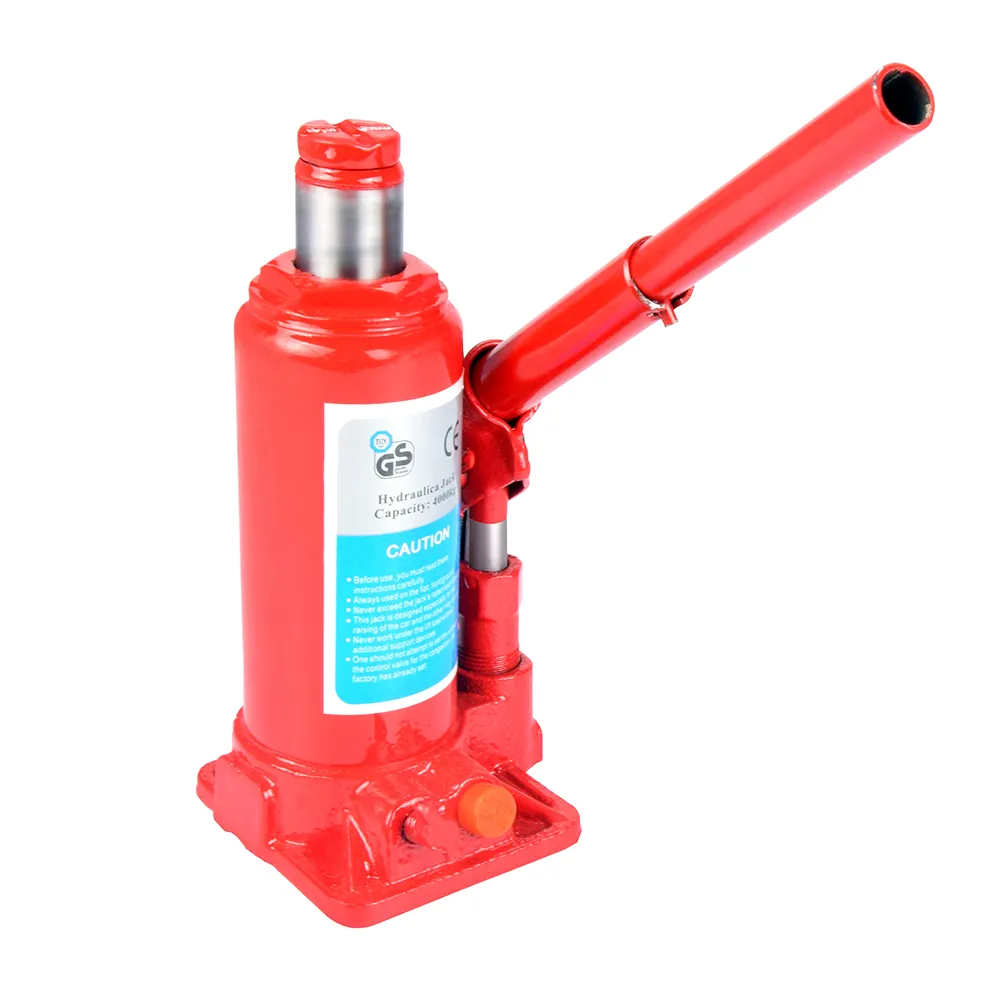

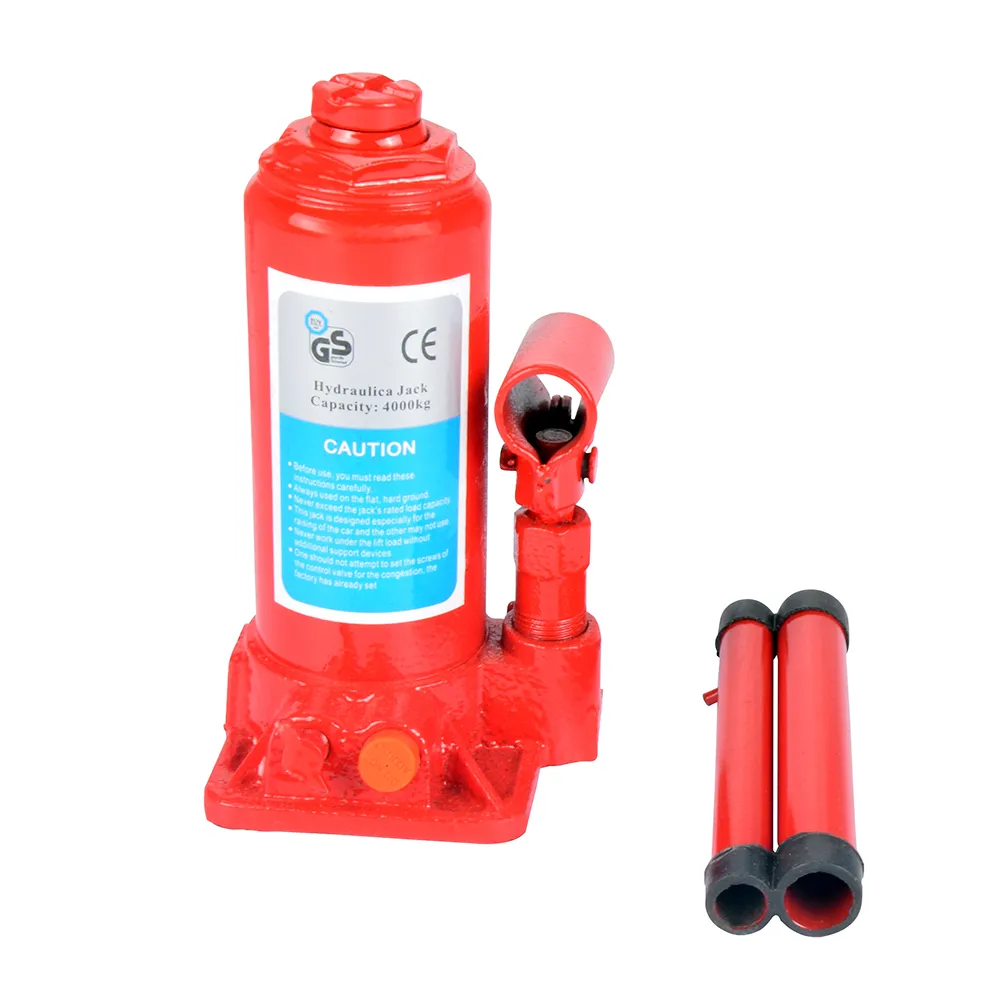

bottle jack with safety valve
Features
● Compact Structure
● Easy Operation and Repair
● Durable for Strenuous Use
● Reliable and Portable
● Ideal for Automotive, Truck, Farm, Industrial, and Construction work
● Maximum load 20 Tonnes.
● Two piece solid steel lifting handle.
● CE,TUV,GS approved.
● Color of Unit May Vary
● metallic paint, flat and good-treat appearance
● Constructed of high-grade steel and built to exacting standards for quality and durability
● High quality, large diameter, hydraulic steel cylinder unit resulting in lower oil pressure needed to raise the load, which helps to reduce wear and extend service life
● Hydraulics are powered with high quality oil, which offers better corrosion resistance and high/low temperature flexibility
● Easy Operation and Repair
● Durable for Strenuous Use
● Reliable and Portable
● Ideal for Automotive, Truck, Farm, Industrial, and Construction work
● Maximum load 20 Tonnes.
● Two piece solid steel lifting handle.
● CE,TUV,GS approved.
● Color of Unit May Vary
● metallic paint, flat and good-treat appearance
● Constructed of high-grade steel and built to exacting standards for quality and durability
● High quality, large diameter, hydraulic steel cylinder unit resulting in lower oil pressure needed to raise the load, which helps to reduce wear and extend service life
● Hydraulics are powered with high quality oil, which offers better corrosion resistance and high/low temperature flexibility
Specifications
| MODEL | CAPACITY | MIN.H. | LIFTING H. | ADJUST H. | MAX.H. | N.W | QTY/CARTON | QTY/20’CY |
| (ton) | (mm) | (mm) | (mm) | (mm) | (kg) | (pcs) | (pcs) | |
| DR-190100100 | 2 | 181 | 116 | 48 | 345 | 2.7 | 10 | 6390 |
| DR-190100101 | 4 | 194 | 118 | 60 | 372 | 3.5 | 5 | 4800 |
| DR-190100102 | 6 | 216 | 127 | 70 | 413 | 4.6 | 5 | 3540 |
| DR-190100103 | 8 | 230 | 147 | 80 | 457 | 6 | 4 | 2850 |
| DR-190100104 | 10 | 230 | 150 | 80 | 460 | 6.6 | 4 | 2620 |
| DR-190100105 | 12 | 230 | 150 | 80 | 460 | 7.8 | 2 | 2270 |
| DR-190100106 | 16 | 230 | 150 | 80 | 460 | 8.6 | 2 | 1980 |
| DR-190100107 | 20 | 242 | 150 | 60 | 452 | 11.5 | 2 | 1530 |
